GYFTS
◆Product Description

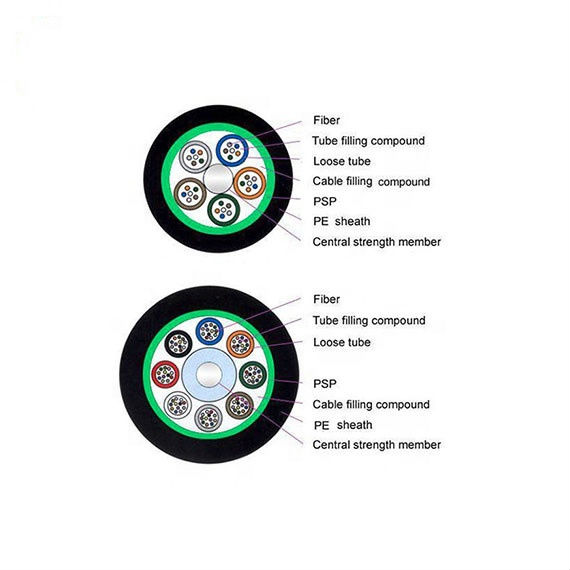

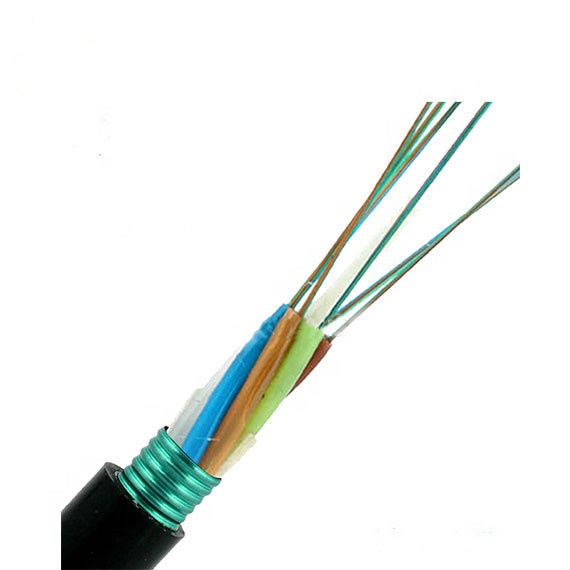

GYFTS is an outdoor communication optical cable of non-metallic strength member of the loose tube jelly-filled structure, with steel-polyethylene laminated sheath.
◆Features
Full cross-section water-blocking structure and double-sided coated aluminum with vertical cover ensure good water blocking and moisture resistance
The loose tube is filled with special factice for key fiber protection.
High-modulus glassfibre reinforced plastics (FRP) central strength member
Product life of 30 years
◆Performance Indicators
Applications: Suitable for long-distance communication and indoor communication
Way of laying: overhead, pipeline
Operating temperature: -40 ~ + 70 ℃
Bend radius: static 10x cable diameter
Dynamic 20x cable diameter
Number of cores | Number of cable cores | Maximum fiber cores in loose tube | Cable diameter (mm) | Cable weight (kg/km) | Allowable tension (N) | Allowable flattening force (N/100 mm) |
short | long term | short | long term |
2-30 | 5 | 6 | 9.8 | 92 | ≥1500 | ≥600 | ≥1000 | ≥300 |
32-60 | 5 | 12 | 10.7 | 107 |
62-72 | 6 | 12 | 11.3 | 123 |
74-84 | 7 | 12 | 12.7 | 153 |
86-96 | 8 | 12 | 12.7 | 153 |
98-120 | 10 | 12 | 14.5 | 191 |
122-144 | 12 | 12 | 16 | 232 |
146-216 | 18 | 12 | 16.7 | 243 |
218-300 | 25 | 12 | 19 | 307 |
