GYFTY53
◆Product Description

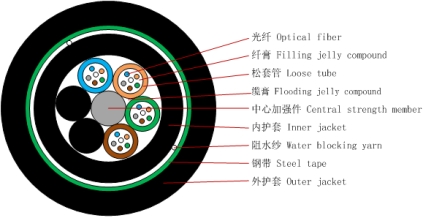

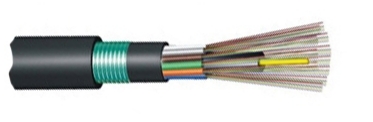

GYFTY53 is an outdoor communication optical cable of non-metallic strength member of the loose tube jelly-filled structure, with polyethylene laminated sheath longitudinally covered with corrugated steel-tape armored polyethylene outer sheath.
◆Features
Full cross-section water-blocking structure to ensure good water blocking and moisture resistance
Loose tube is filled with special ointment for a key fiber protection
High-modulus glassfibre reinforced plastics (FRP) central strength member
Double-sided coated aluminum with vertical cover ensures radial moisture protection and enhances resistance to lateral pressure.
Non-metallic strength member is applicable for multithunder area.
Product life of 30 years
◆Performance Indicators
Applications: Suitable for long-distance communication and indoor communication
Way of laying: Direct burial in multithunder area.
Operating temperature: -40 ~ + 70 ℃
Bend radius: Static 12.5x cable diameter
Dynamic 25x cable diameter

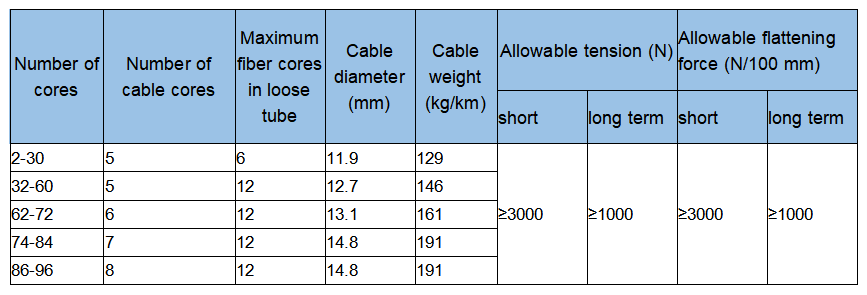

◆Specifications
Number of cores | Number of cable cores | Maximum fiber cores in loose tube | Cable diameter (mm) | Cable weight (kg/km) | Allowable tension (N) | Allowable flattening force (N/100 mm) |
short | long term | short | long term |
2-30 | 5 | 6 | 11.9 | 129 | ≥3000 | ≥1000 | ≥3000 | ≥1000 |
32-60 | 5 | 12 | 12.7 | 146 |
62-72 | 6 | 12 | 13.1 | 161 |
74-84 | 7 | 12 | 14.8 | 191 |
86-96 | 8 | 12 | 14.8 | 191 |
